2. Introduction to Machine Learning

There are probably a thousand articles called introduction to machine learning. Rather than rewrite this, I will instead introduce the main ideas focused on a chemistry example. Here are some introductory sources, and please do recommend new ones to me:

  1. The book I first read in grad school about machine learning by Ethem Alpaydin[Alp20]

  2. Nils Nillson’s online book Introductory Machine Learning

  3. Two reviews of machine learning in materials[FZJS21, Bal19]

  4. A review of machine learning in computational chemistry[GomezBAG20]

  5. A review of machine learning in metals[NDJ+18]

I hope you learn from these sources about how machine learning is a method of modeling data, typically with predictive functions. Machine learning includes many techniques, but here we will focus on only those necessary to transition into deep learning. For example, random forests, support vector machines, and nearest neighbor are widely-used machine learning techniques that are effective but not covered here.

Audience & Objectives

This chapter is intended for novices of machine learning with familiarity of chemistry and python. It is recommended that you look over one of the above recommended introductory articles. This specific article assumes a very small amount of knowledge of the pandas library (loading and selecting a column), awareness of rdkit (how we draw molecules), and that we store/retrieve molecules as SMILES [Wei88]. After reading this, you should be able to:

  • Define features, labels

  • Distinguish between supervised and unsupervised learning

  • Understand what a loss function is and how it can be minimized with gradient descent

  • Understand what model is and its connection to features and labels

  • Be able to cluster data and describe what it tells us about data

2.1. The Ingredients

Machine learning is about constructing models by fitting them to data. Firstly, definitions:

Features

    set of \(N\) vectors \(\{\vec{x}_i\}\) of dimension \(D\). Can be reals, integers, etc.

Labels

    set of \(N\) integers or reals \(\{y_i\}\). \(y_i\) is usually a scalar

Labeled Data

    set of \(N\) tuples \(\{\left(\vec{x}_i, y_i\right)\}\)

Unlabeled Data

    set of \(N\) features \(\{\vec{x}_i\}\) that may have unknown \(y\) labels

Model

    A function \(f(\vec{x})\) that takes a given feature vector in and returns a predicted \(\hat{y}\)

Predictions

     \(\hat{y}\), our predicted output for a given input \(\vec{x}\).

2.2. Supervised Learning

Our first task will be supervised learning. Supervised learning means predicting \(y\) from \(\vec{x}\) with a model trained on data. It is supervised because we tell the algorithm what the labels are in our dataset. Another method we’ll explore is unsupervised learning where we do not tell the algorithm the labels. We’ll see this supervised/unsupervised distinction can be more subtle later on, but this is a great definition for now.

To see an example, we will use a dataset called AqSolDB[SKE19] that is about 10,000 unique compounds with measured solubility in water (label). The dataset also includes molecular properties (features) that we can use for machine learning. The solubility measurement is solubility of the compound in water in units of log molarity.

2.3. Running This Notebook

Click the    above to launch this page as an interactive Google Colab. See details below on installing packages.

2.3.1. Load Data

Download the data and load it into a Pandas data frame. The hidden cells below sets-up our imports and/or install necessary packages.

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
import jax.numpy as jnp
import jax
from jax.example_libraries import optimizers
import sklearn.manifold, sklearn.cluster
import rdkit, rdkit.Chem, rdkit.Chem.Draw
import dmol
# soldata = pd.read_csv('https://dataverse.harvard.edu/api/access/datafile/3407241?format=original&gbrecs=true')
# had to rehost because dataverse isn't reliable
soldata = pd.read_csv(
    "https://github.com/whitead/dmol-book/raw/master/data/curated-solubility-dataset.csv"
)
soldata.head()
ID Name InChI InChIKey SMILES Solubility SD Ocurrences Group MolWt ... NumRotatableBonds NumValenceElectrons NumAromaticRings NumSaturatedRings NumAliphaticRings RingCount TPSA LabuteASA BalabanJ BertzCT
0 A-3 N,N,N-trimethyloctadecan-1-aminium bromide InChI=1S/C21H46N.BrH/c1-5-6-7-8-9-10-11-12-13-... SZEMGTQCPRNXEG-UHFFFAOYSA-M [Br-].CCCCCCCCCCCCCCCCCC[N+](C)(C)C -3.616127 0.0 1 G1 392.510 ... 17.0 142.0 0.0 0.0 0.0 0.0 0.00 158.520601 0.000000e+00 210.377334
1 A-4 Benzo[cd]indol-2(1H)-one InChI=1S/C11H7NO/c13-11-8-5-1-3-7-4-2-6-9(12-1... GPYLCFQEKPUWLD-UHFFFAOYSA-N O=C1Nc2cccc3cccc1c23 -3.254767 0.0 1 G1 169.183 ... 0.0 62.0 2.0 0.0 1.0 3.0 29.10 75.183563 2.582996e+00 511.229248
2 A-5 4-chlorobenzaldehyde InChI=1S/C7H5ClO/c8-7-3-1-6(5-9)2-4-7/h1-5H AVPYQKSLYISFPO-UHFFFAOYSA-N Clc1ccc(C=O)cc1 -2.177078 0.0 1 G1 140.569 ... 1.0 46.0 1.0 0.0 0.0 1.0 17.07 58.261134 3.009782e+00 202.661065
3 A-8 zinc bis[2-hydroxy-3,5-bis(1-phenylethyl)benzo... InChI=1S/2C23H22O3.Zn/c2*1-15(17-9-5-3-6-10-17... XTUPUYCJWKHGSW-UHFFFAOYSA-L [Zn++].CC(c1ccccc1)c2cc(C(C)c3ccccc3)c(O)c(c2)... -3.924409 0.0 1 G1 756.226 ... 10.0 264.0 6.0 0.0 0.0 6.0 120.72 323.755434 2.322963e-07 1964.648666
4 A-9 4-({4-[bis(oxiran-2-ylmethyl)amino]phenyl}meth... InChI=1S/C25H30N2O4/c1-5-20(26(10-22-14-28-22)... FAUAZXVRLVIARB-UHFFFAOYSA-N C1OC1CN(CC2CO2)c3ccc(Cc4ccc(cc4)N(CC5CO5)CC6CO... -4.662065 0.0 1 G1 422.525 ... 12.0 164.0 2.0 4.0 4.0 6.0 56.60 183.183268 1.084427e+00 769.899934

5 rows × 26 columns

2.3.2. Data Exploration

We can see that there are a number of features like molecular weight, rotatable bonds, valence electrons, etc. And of course, there is the label solubility. One of the first things we should always do is get familiar with our data in a process that is sometimes called exploratory data analysis (EDA). Let’s start by examining a few specific examples to get a sense of the range of labels/data.

# plot one molecule
mol = rdkit.Chem.MolFromInchi(soldata.InChI[0])
mol

This is first molecule in the dataset rendered using rdkit.

Let’s now look at the extreme values to get a sense of the range of solubility data and the molecules that make it. First, we’ll histogram (using seaborn.distplot) the solubility which tells us about the shape of its probability distribution and the extreme values.

sns.distplot(soldata.Solubility)
plt.show()
../_images/introduction_10_0.png

Above we can see the histogram of the solubility with kernel density estimate overlaid. The histogram shows that the solubility varies from about -13 to 2.5 and is not normally distributed.

# get 3 lowest and 3 highest solubilities
soldata_sorted = soldata.sort_values("Solubility")
extremes = pd.concat([soldata_sorted[:3], soldata_sorted[-3:]])

# We need to have a list of strings for legends
legend_text = [
    f"{x.ID}: solubility = {x.Solubility:.2f}" for x in extremes.itertuples()
]

# now plot them on a grid
extreme_mols = [rdkit.Chem.MolFromInchi(inchi) for inchi in extremes.InChI]
rdkit.Chem.Draw.MolsToGridImage(
    extreme_mols, molsPerRow=3, subImgSize=(250, 250), legends=legend_text
)
../_images/introduction_12_0.svg

The figure of extreme molecules shows highly-chlorinated compounds have the lowest solubility and ionic compounds have higher solubility. Is A-2918 an outlier, a mistake? Also, is NH\(_3\) really comparable to these organic compounds? These are the kind of questions that you should consider before doing any modeling.

2.3.3. Feature Correlation

Now let’s examine the features and see how correlated they are with solubility. Note that there are a few columns unrelated to features or solubility: SD (standard deviation), Ocurrences (how often the molecule occurred in the constituent databases), and Group (where the data came from).

features_start_at = list(soldata.columns).index("MolWt")
feature_names = soldata.columns[features_start_at:]

fig, axs = plt.subplots(nrows=5, ncols=4, sharey=True, figsize=(12, 8), dpi=300)
axs = axs.flatten()  # so we don't have to slice by row and column
for i, n in enumerate(feature_names):
    ax = axs[i]
    ax.scatter(
        soldata[n], soldata.Solubility, s=6, alpha=0.4, color=f"C{i}"
    )  # add some color
    if i % 4 == 0:
        ax.set_ylabel("Solubility")
    ax.set_xlabel(n)
# hide empty subplots
for i in range(len(feature_names), len(axs)):
    fig.delaxes(axs[i])
plt.tight_layout()
plt.show()

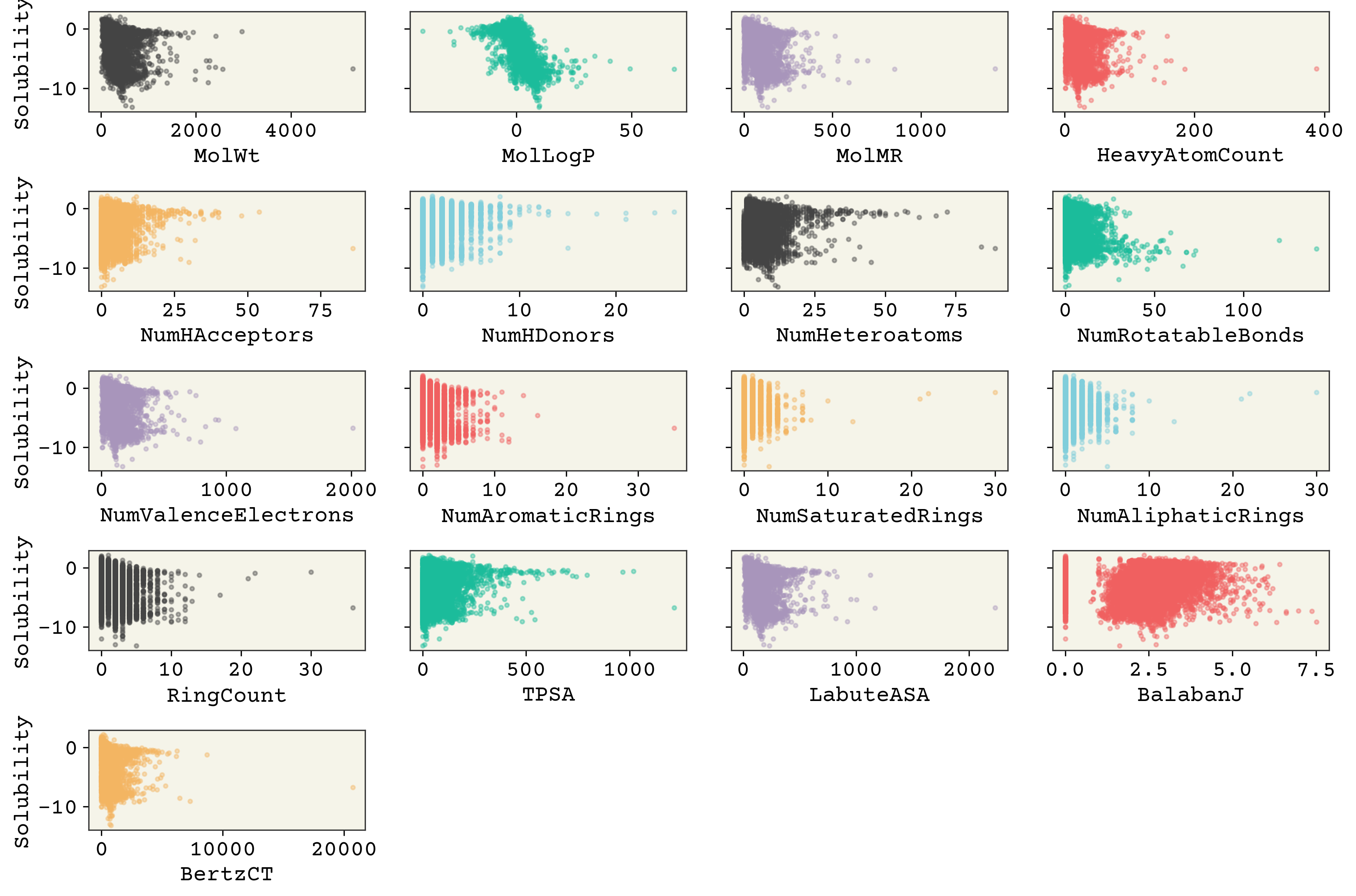

../_images/introduction_15_0.png

It’s interesting that molecular weight or hydrogen bond numbers seem to have little correlation, at least from this plot. MolLogP, which is a calculated descriptor related to solubility, does correlate well. You can also see that some of these features have low variance, meaning the value of the feature changes little or not at all for many data points (e.g., “NumHDonors”).

2.3.4. Linear Model

Let’s begin with one of the simplest approaches — a linear model. This is our first type of supervised learning and is rarely used due to something we’ll see — the difficult choice of features.

Our model will be defined by this equation:

(2.1)\[\begin{equation} y = \vec{w} \cdot \vec{x} + b \end{equation}\]

which is defined for a single data point. The shape of a single feature vector, \(\vec{x}\), is 17 in our case (for the 17 features). \(\vec{w}\) is a vector of adjustable parameters of length 17 and \(b\) is an adjustable scalar (called bias).

We’ll implement this model using a library called jax that is very similar to numpy except it can compute analytical gradients easily via autodiff.

def linear_model(x, w, b):
    return jnp.dot(x, w) + b


# test it out
x = np.array([1, 0, 2.5])
w = np.array([0.2, -0.5, 0.4])
b = 4.3

linear_model(x, w, b)
WARNING:jax._src.lib.xla_bridge:No GPU/TPU found, falling back to CPU. (Set TF_CPP_MIN_LOG_LEVEL=0 and rerun for more info.)
DeviceArray(5.5, dtype=float32)

Now comes the critical question: How do we find the adjustable parameters \(\vec{w}\) and \(b\)? The classic solution for linear regression is computing the adjustable parameters directly with a pseudo-inverse, \(\vec{w} = (X^TX)^{-1}X^{T}\vec{y}\). You can read more about this here. We’ll use an iterative approach that mirrors what we’ll do in deep learning. This is not the correct approach for linear regression, but it’ll be useful for us to get used to the iterative approach since we’ll see it so often in deep learning.

To iteratively find our adjustable parameters, we will pick a loss function and minimize with gradients. Let’s define these quantities and compute our loss with some initial random w and b.

# convert data into features, labels
features = soldata.loc[:, feature_names].values
labels = soldata.Solubility.values

feature_dim = features.shape[1]

# initialize our paramaters
w = np.random.normal(size=feature_dim)
b = 0.0

# define loss
def loss(y, labels):
    return jnp.mean((y - labels) ** 2)


# test it out
y = linear_model(features, w, b)
loss(y, labels)
DeviceArray(3265882.2, dtype=float32)

Wow! Our loss is terrible, especially considering that solubilities are between -13 and 2. But, that’s right since we just guessed our initial parameters.

2.3.5. Gradient Descent

We will now try to reduce loss by using information about how it changes with respect to the adjustable parameters. If we write our loss as:

(2.2)\[\begin{equation} L = \frac{1}{N}\sum_i^N \left[y_i - f(\vec{x}_i, \vec{w}, b)\right]^2 \end{equation}\]

This loss is called mean squared error, often abbreviated MSE. We can compute our loss gradients with respect to the adjustable parameters:

(2.3)\[\begin{equation} \frac{\partial L}{\partial w_i}, \frac{\partial L}{\partial b} \end{equation}\]

where \(w_i\) is the \(i\)th element of the weight vector \(\vec{w}\). We can reduce the loss by taking a step in the direction of its negative gradient:

(2.4)\[\begin{equation} (w_i, b') = \left(w_i - \eta \frac{\partial L}{\partial w_i}, b - \eta\frac{\partial L}{\partial b}\right) \end{equation}\]

where \(\eta\) is learning rate, which an adjustable but not trained parameter (an example of a hyperparameter) which we just guess to be \(1\times10^{-6}\) in this example. Typically, it’s chosen to be some power of 10 that is at most 0.1. Values higher than that cause stability problems. Let’s try this procedure, which is called gradient descent.

# compute gradients
def loss_wrapper(w, b, data):
    features = data[0]
    labels = data[1]
    y = linear_model(features, w, b)
    return loss(y, labels)


loss_grad = jax.grad(loss_wrapper, (0, 1))

# test it out
loss_grad(w, b, (features, labels))
(DeviceArray([1.1313606e+06, 7.3055479e+03, 2.8128903e+05, 7.4776180e+04,
              1.5807716e+04, 4.1010732e+03, 2.2745816e+04, 1.7236283e+04,
              3.9615741e+05, 5.2891074e+03, 1.0585280e+03, 1.8357089e+03,
              7.1248174e+03, 2.7012794e+05, 4.6752903e+05, 5.4541211e+03,
              2.5596618e+06], dtype=float32),
 DeviceArray(2671.3784, dtype=float32, weak_type=True))

We’ve computed the gradient. Now we’ll minimize it over a few steps.

loss_progress = []
eta = 1e-6
data = (features, labels)
for i in range(10):
    grad = loss_grad(w, b, data)
    w -= eta * grad[0]
    b -= eta * grad[1]
    loss_progress.append(loss_wrapper(w, b, data))
plt.plot(loss_progress)

plt.xlabel("Step")
plt.yscale("log")
plt.ylabel("Loss")
plt.title("Full Dataset Training Curve")
plt.show()

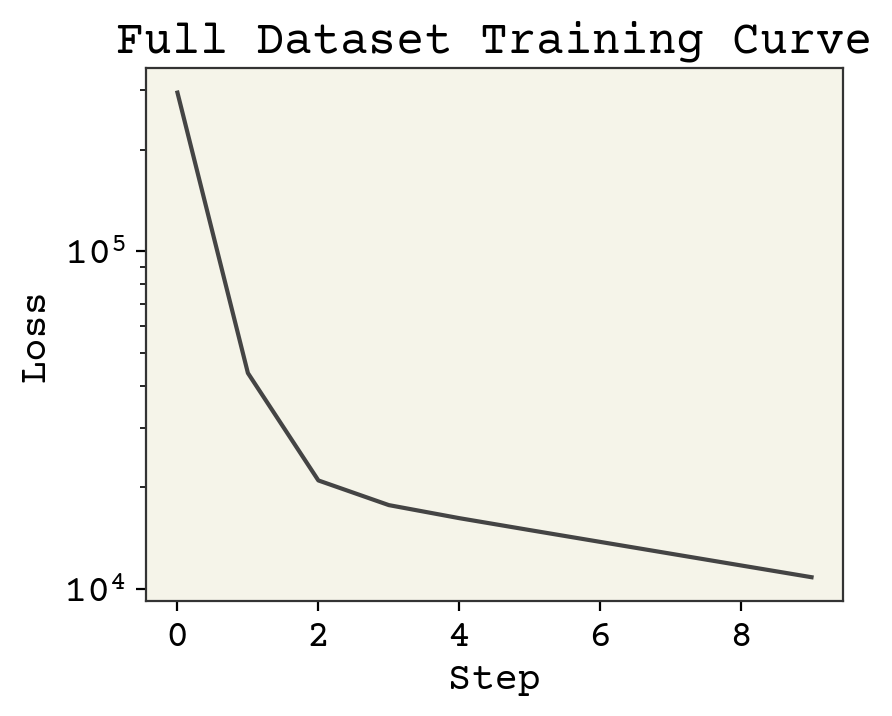

../_images/introduction_24_0.png

2.3.6. Training Curve

The figure above is called a training curve. We’ll see these frequently in this book and they show us if the loss is decreasing, indicating the model is learning. Training curves are also called learning curves. The x-axis may be example number, total iterations through dataset (called epochs), or some other measure of amount of data used for training the model.

2.3.7. Batching

This is making good progress. But let’s try to speed things up with a small change. We’ll use batching, which is how training is actually done in machine learning. The small change is that rather than using all data at once, we only take a small batch of data. Batching provides two benefits: it reduces the amount of time to compute an update to our parameters, and it makes the training process random. The randomness makes it possible to escape local minima that might stop training progress. This addition of batching makes our algorithm stochastic and thus we call this procedure stochastic gradient descent (SGD). SGD, and variations of it, are the most common methods of training in deep learning.

# initialize our paramaters
# to be fair to previous method
w = np.random.normal(size=feature_dim)
b = 0.0

loss_progress = []
eta = 1e-6
batch_size = 32
N = len(labels)  # number of data points
data = (features, labels)
# compute how much data fits nicely into a batch
# and drop extra data
new_N = len(labels) // batch_size * batch_size

# the -1 means that numpy will compute
# what that dimension should be
batched_features = features[:new_N].reshape((-1, batch_size, feature_dim))
batched_labels = labels[:new_N].reshape((-1, batch_size))
# to make it random, we'll iterate over the batches randomly
indices = np.arange(new_N // batch_size)
np.random.shuffle(indices)
for i in indices:
    # choose a random set of
    # indices to slice our data
    grad = loss_grad(w, b, (batched_features[i], batched_labels[i]))
    w -= eta * grad[0]
    b -= eta * grad[1]
    # we still compute loss on whole dataset, but not every step
    if i % 10 == 0:
        loss_progress.append(loss_wrapper(w, b, data))

plt.plot(np.arange(len(loss_progress)) * 10, loss_progress)
plt.xlabel("Step")
plt.yscale("log")
plt.ylabel("Loss")
plt.title("Batched Loss Curve")
plt.show()

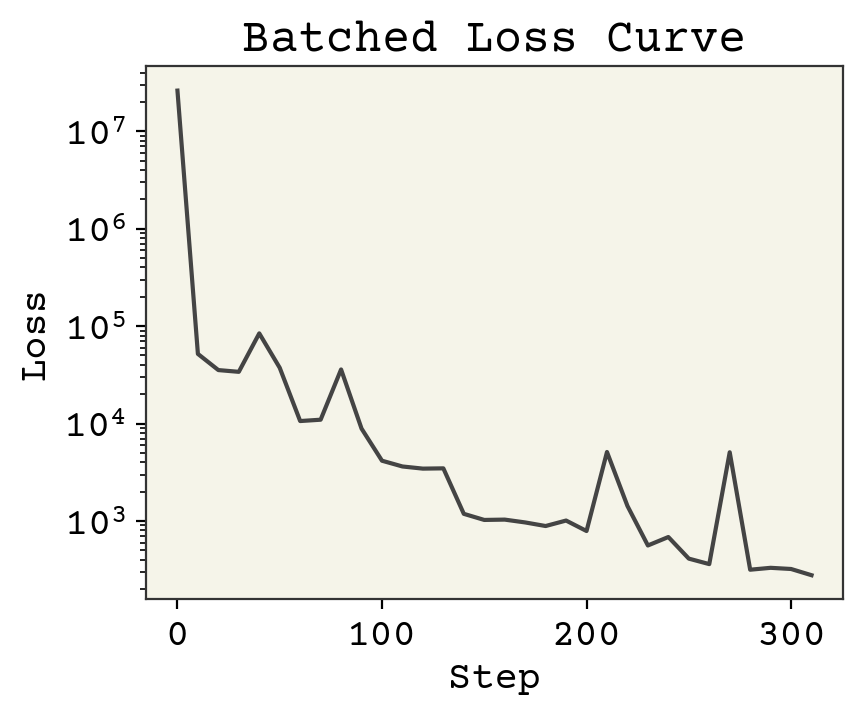

../_images/introduction_27_0.png

There are three changes to note:

  1. The loss is lower than without batching

  2. There are more steps, even though we iterated over our dataset once instead of 10 times

  3. The loss doesn’t always go down

The reason the loss is lower is because we’re able to take more steps even though we only see each data point once. That’s because we update at each batch, giving more updates per iteration over the dataset. Specifically if \(B\) is batch size, there are \(N / B\) updates for every 1 update in the original gradient descent. The reason the loss doesn’t always go down is that each time we evaluate it, it’s on a different set of data. Some molecules are harder to predict than others. Also, each step we take in minimizing loss may not be correct because we only updated our parameters based on one batch. Assuming our batches are mixed though, we will always improve in expectation (on average).

2.3.8. Standardize features

It seems we cannot get past a certain loss. If you examine the gradients you’ll see some of them are very large and some are very small. Each of the features have different magnitudes. For example, molecular weights are large numbers. The number of rings in a molecule is a small number. Each of these must use the same learning rate, \(\eta\), and that is ok for some but too small for others. If we increase \(\eta\), our training procedure will explode because of these larger feature gradients. A standard trick we can do is make all the features have the same magnitude, using the equation for standardization you might see in your statistics textbook:

(2.5)\[\begin{equation} x_{ij} = \frac{x_{ij} - \bar{x_j}}{\sigma_{x_j}} \end{equation}\]

where \(\bar{x_j}\) is column mean and \(\sigma_{x_j}\) is column standard deviation. To be careful about contaminating training data with test data – leaking information between train and test data – we should only use training data in computing the mean and standard deviation. We want our test data to approximate how we’ll use our model on unseen data, so we cannot know what these unseen features means/standard deviations might be and thus cannot use them at training time for standardization.

fstd = np.std(features, axis=0)
fmean = np.mean(features, axis=0)
std_features = (features - fmean) / fstd
# initialize our paramaters
# since we're changing the features
w = np.random.normal(scale=0.1, size=feature_dim)
b = 0.0


loss_progress = []
eta = 1e-2
batch_size = 32
N = len(labels)  # number of data points
data = (std_features, labels)
# compute how much data fits nicely into a batch
# and drop extra data
new_N = len(labels) // batch_size * batch_size
num_epochs = 3

# the -1 means that numpy will compute
# what that dimension should be
batched_features = std_features[:new_N].reshape((-1, batch_size, feature_dim))
batched_labels = labels[:new_N].reshape((-1, batch_size))
indices = np.arange(new_N // batch_size)

# iterate through the dataset 3 times
for epoch in range(num_epochs):
    # to make it random, we'll iterate over the batches randomly
    np.random.shuffle(indices)
    for i in indices:
        # choose a random set of
        # indices to slice our data
        grad = loss_grad(w, b, (batched_features[i], batched_labels[i]))
        w -= eta * grad[0]
        b -= eta * grad[1]
        # we still compute loss on whole dataset, but not every step
        if i % 50 == 0:
            loss_progress.append(loss_wrapper(w, b, data))

plt.plot(np.arange(len(loss_progress)) * 50, loss_progress)
plt.xlabel("Step")
plt.yscale("log")
plt.ylabel("Loss")
plt.show()
../_images/introduction_31_0.png

Notice we safely increased our learning rate to 0.01, which is possible because all the features are of similar magnitude. We also could keep training, since we’re gaining improvements.

2.3.9. Analyzing Model Performance

This is a large topic that we’ll explore more, but the first thing we typically examine in supervised learning is a parity plot, which shows our predictions vs. our label prediction. What’s nice about this plot is that it works no matter what the dimensions of the features are. A perfect fit would fall onto the line at \(y = \hat{y}\)

predicted_labels = linear_model(std_features, w, b)

plt.plot([-100, 100], [-100, 100])
plt.scatter(labels, predicted_labels, s=4, alpha=0.7)
plt.xlabel("Measured Solubility $y$")
plt.ylabel("Predicted Solubility $\hat{y}$")
plt.xlim(-13.5, 2)
plt.ylim(-13.5, 2)
plt.show()

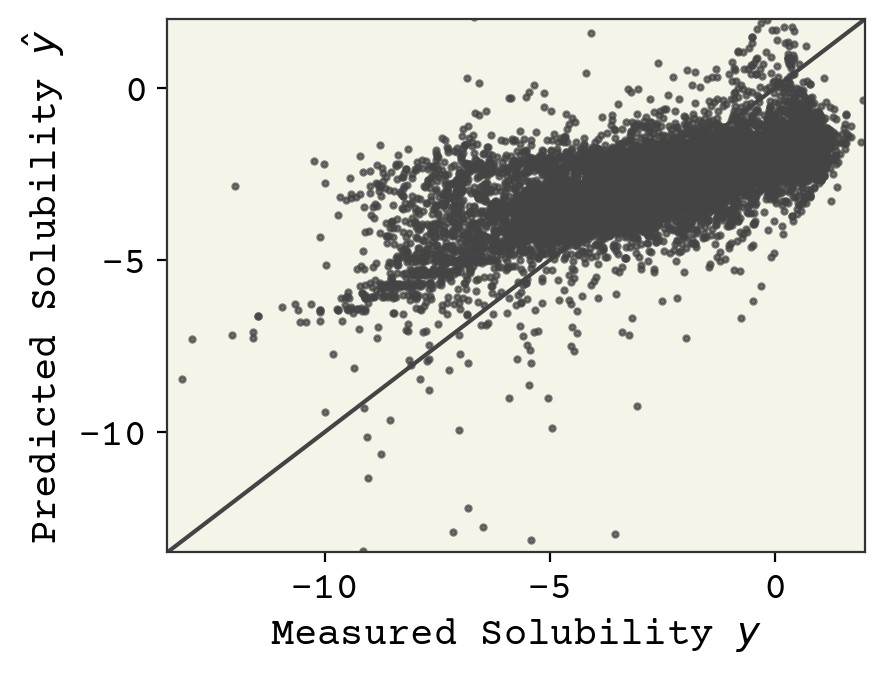

../_images/introduction_34_0.png

Final model assessment can be done with loss, but typically other metrics are also used. In regression, a correlation coefficient is typically reported in addition to loss. In our example, this is computed as

# slice correlation between predict/labels
# from correlation matrix
np.corrcoef(labels, predicted_labels)[0, 1]
0.6475304402750964

A correlation coefficient of 0.65 is OK, but not great.

2.4. Unsupervised Learning

In unsupervised learning, the goal is to predict \(\hat{y}\) without labels. This seems like an impossible task. How do we judge success? Typically, unsupervised learning can be broken into three categories:

Clustering

     Here we assume \(\{y_i\}\) is a class variable and try to partition our features into these classes. In clustering we are simultaneously learning the definition of the classes (called clusters) and which cluster each feature should be assigned to.

Finding Signal

     \(x\) is assumed to be made of two components: noise and signal (\(y\)). We try to separate the signal \(y\) from \(x\) and discard noise. Highly-related with representation learning, which we’ll see later.

Generative

     Generative methods are methods where we try to learn \(P(\vec{x})\) so that we can sample new values of \(\vec{x}\). It is analogous to \(y\) being probability and we’re trying to estimate it. We’ll see these more later.

2.4.1. Clustering

Clustering is historically one of the most well-known and still popular machine learning methods. It’s always popular because it can provide new insight from data. Clustering gives class labels where none existed and thus can help find patterns in data. This is also a reason that it has become less popular in chemistry (and most fields): there is no right or wrong answer. Two people doing clustering independently will often arrive at different answers. Nevertheless, it should be a tool you know and can be a good exploration strategy.

We’ll look at the classic clustering method: k-means. Wikipedia has a great article on this classic algorithm, so I won’t try to repeat that. To make our clustering actually visible, we’ll start by projecting our features into 2 dimensions. This will be covered in representation learning, so don’t worry about these steps.

# get down to 2 dimensions for easy visuals
embedding = sklearn.manifold.Isomap(n_components=2)
# only fit to every 25th point to make it fast
embedding.fit(std_features[::25, :])
reduced_features = embedding.transform(std_features)

We’re going to zoom into the middle 99th percentile of the data since some of the points are extremely far away (though that is interesting!).

xlow, xhi = np.quantile(reduced_features, [0.005, 0.995], axis=0)

plt.figure(dpi=300)
plt.scatter(
    reduced_features[:, 0],
    reduced_features[:, 1],
    s=4,
    alpha=0.7,
    c=labels,
    edgecolors="none",
)
plt.xlim(xlow[0], xhi[0])
plt.ylim(xlow[1], xhi[1])
cb = plt.colorbar()
cb.set_label("Solubility")
plt.show()

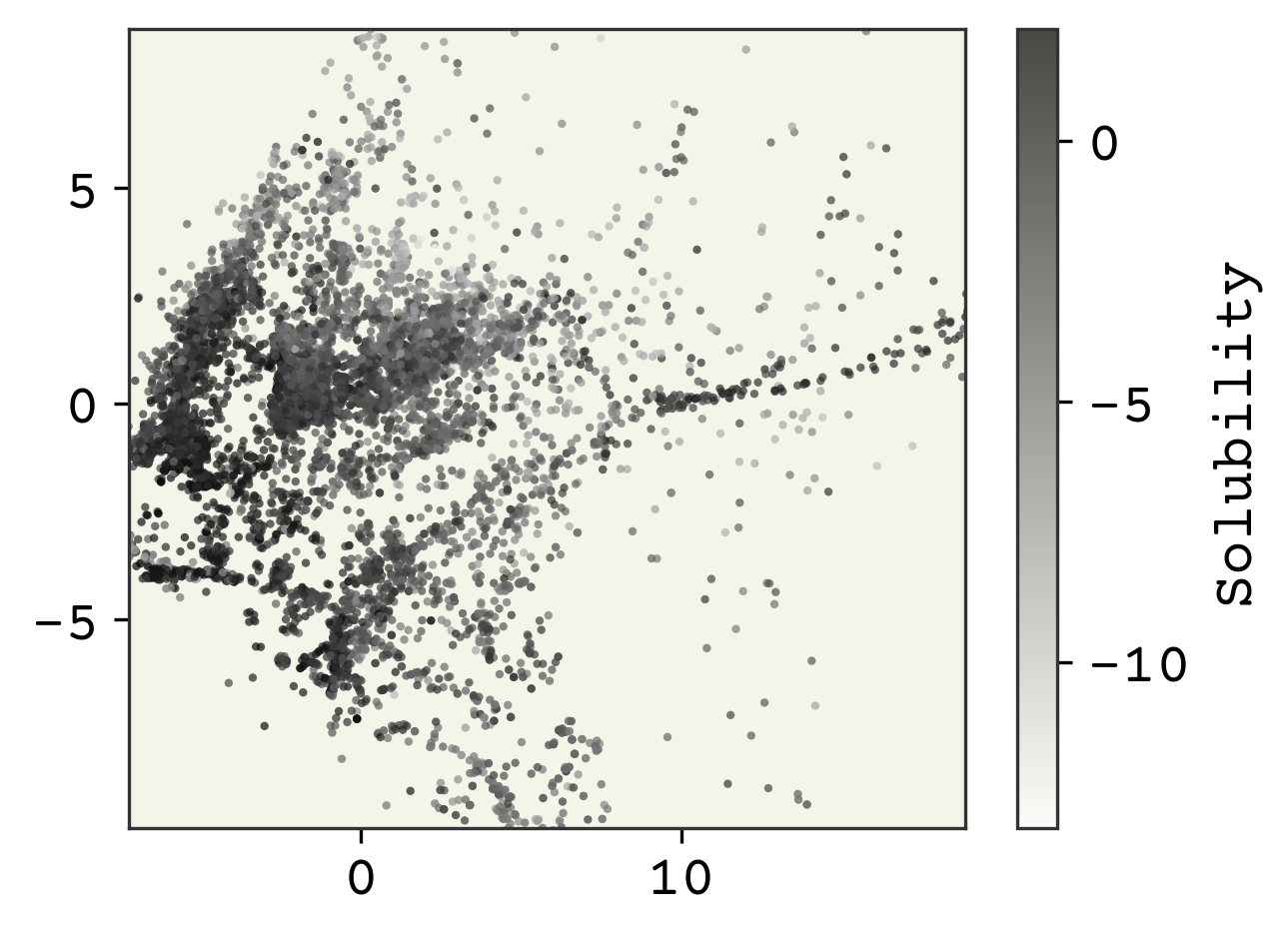

../_images/introduction_43_0.png

The dimensionality reduction has made our features only 2 dimensions. We can see some structure, especially with the solubility as the coloring. Note in these kind of plots, where we have reduced dimensions in someway, we do not label the axes because they are arbitrary.

Now we cluster. The main challenge in clustering is deciding how many clusters there should be. There are a number of methods out there, but they basically come down to intuition. You, as the chemist, should use some knowledge outside of the data to intuit what is the cluster number. Sounds unscientific? Yeah, that’s why clustering is hard.

# cluster - using whole features
kmeans = sklearn.cluster.KMeans(n_clusters=4, random_state=0)
kmeans.fit(std_features)

Very simple procedure! Now we’ll visualize by coloring our data by the class assigned.

plt.figure(dpi=300)
point_colors = [f"C{i}" for i in kmeans.labels_]
plt.scatter(
    reduced_features[:, 0],
    reduced_features[:, 1],
    s=4,
    alpha=0.7,
    c=point_colors,
    edgecolors="none",
)
# make legend
legend_elements = [
    plt.matplotlib.patches.Patch(
        facecolor=f"C{i}", edgecolor="none", label=f"Class {i}"
    )
    for i in range(4)
]
plt.legend(handles=legend_elements)
plt.xlim(xlow[0], xhi[0])
plt.ylim(xlow[1], xhi[1])
plt.show()

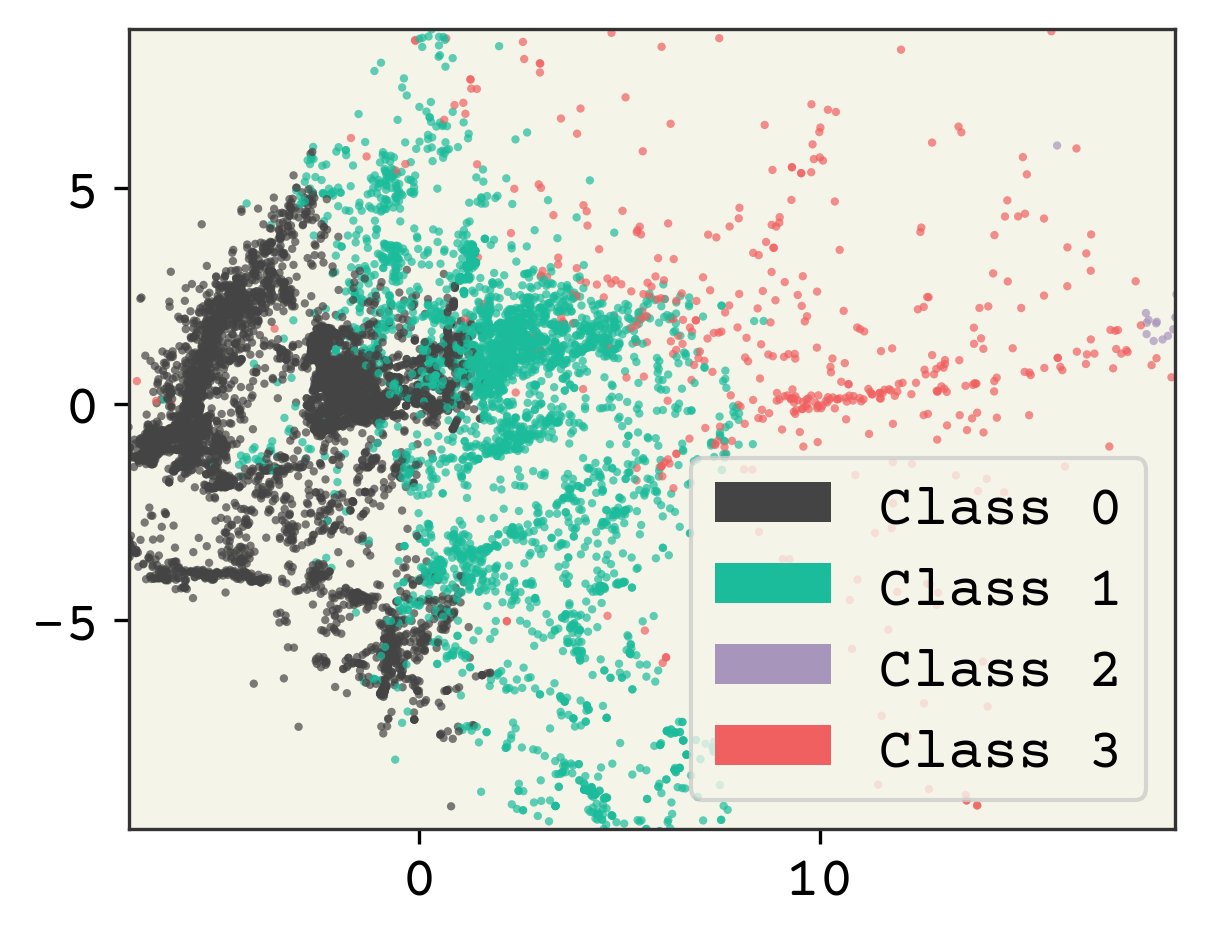

../_images/introduction_47_0.png

2.4.2. Choosing Cluster Number

How do we know we had the correct number? Intuition. There is one tool we can use to help us, called an elbow plot. The k-means clusters can be used to compute the mean squared distance from cluster center, basically a version of loss function. However, if we treat cluster number as a trainable parameter we’d find the best fit at the cluster number being equal to number of data points. Not helpful! However, we can see when the slope of this loss becomes approximately constant and assume that those extra clusters are adding no new insight. Let’s plot the loss and see what happens. Note we’ll be using a subsample of the dataset to save time.

# make an elbow plot
loss = []
cn = range(2, 15)
for i in cn:
    kmeans = sklearn.cluster.KMeans(n_clusters=i, random_state=0)
    # use every 50th point
    kmeans.fit(std_features[::50])
    # we get score -> opposite of loss
    # so take -
    loss.append(-kmeans.score(std_features[::50]))

plt.plot(cn, loss, "o-")
plt.xlabel("Cluster Number")
plt.ylabel("Loss")
plt.title("Elbow Plot")
plt.show()

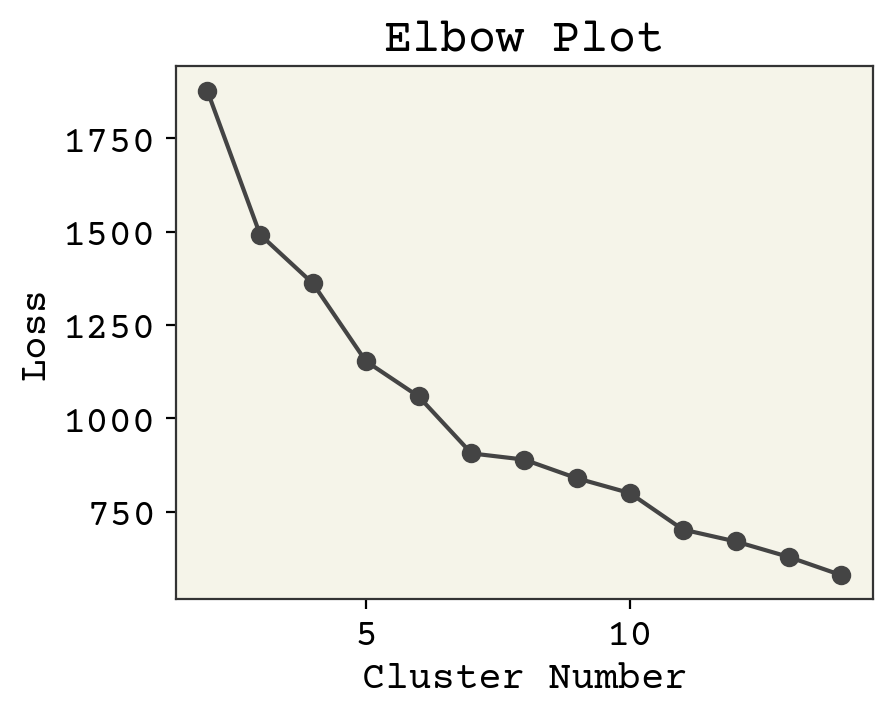

../_images/introduction_49_0.png

Where is the transition? If I squint, maybe at 6? 3? 4? 7? Let’s choose 4 because it sounds nice and is plausible based on the data. The last task is to get some insight into what the clusters actually are. We can extract the most centered data points (closest to cluster center) and consider them to be representative of the cluster.

# cluster - using whole features
kmeans = sklearn.cluster.KMeans(n_clusters=4, random_state=0)
kmeans.fit(std_features)

cluster_center_idx = []
for c in kmeans.cluster_centers_:
    # find point closest
    i = np.argmin(np.sum((std_features - c) ** 2, axis=1))
    cluster_center_idx.append(i)
cluster_centers = soldata.iloc[cluster_center_idx, :]

legend_text = [f"Class {i}" for i in range(4)]

# now plot them on a grid
cluster_mols = [rdkit.Chem.MolFromInchi(inchi) for inchi in cluster_centers.InChI]
rdkit.Chem.Draw.MolsToGridImage(
    cluster_mols, molsPerRow=2, subImgSize=(400, 400), legends=legend_text
)
../_images/introduction_51_0.svg

So what exactly are these classes? Unclear. We intentionally did not reveal solubility (unsupervised learning) so there is not necessarily any connection with solubility. These classes are more a result of which features were chosen for the dataset. You could make a hypothesis, like class 1 is all negatively charged or class 0 is aliphatic, and investigate. Ultimately though there is no best clustering and often unsupervised learning is more about finding insight or patterns and not about producing a highly-accurate model.

The elbow plot method is one of many approaches to selecting cluster number [PDN05]. I prefer it because it’s quite clear that you are using intuition. More sophisticated methods sort-of conceal the fact that there is no right or wrong answer in clustering.

Note

This process does not result in a function that predicts solubility. We might try to gain insight about predicting solubility with our predicted classes, but that is not the goal of clustering.

2.5. Chapter Summary

  • Supervised machine learning is building models that can predict labels \(y\) from input features \(\vec{x}\).

  • Data can be labeled or unlabeled.

  • Models are trained by minimizing loss with stochastic gradient descent.

  • Unsupervised learning is building models that can find patterns in data.

  • Clustering is unsupervised learning where the model groups the data points into clusters

2.6. Exercises

2.6.1. Data

  1. Using numpy reductions np.amin, np.std, etc. (not pandas!), compute the mean, min, max, and standard deviation for each feature across all data points.

  2. Use rdkit to draw the 2 highest molecular weight molecules. Note they look strange.

2.6.2. Linear Models

  1. Prove that a nonlinear model like \(y = \vec{w_1} \cdot \sin\left(\vec{x}\right) + \vec{w_2} \cdot \vec{x} + b\) could be represented as a linear model.

  2. Write out the linear model equation in Einstein notation in batched form. Batched form means we explicitly have an index indicating batch. For example, the features will be \(x_{bi}\) where \(b\) indicates the index in the batch and \(i\) indicates the feature.

2.6.3. Minimizing Loss

  1. We standardized the features, but not the labels. Would standardizing the labels affect our choice of learning rate? Prove your answer.

  2. Implement a loss that is mean absolute error, instead of mean squared error. Compute its gradient using jax.

  3. Using the standardized features, show what effect batch size has on training. Use batch sizes of 1, 8, 32, 256, 1024. Make sure you re-initialize your weights in between each run. Plot the log-loss for each batch size on the same plot. Describe your results.

2.6.4. Clustering

  1. We say that clustering is a type of unsupervised learning and that it predicts the labels. What exactly are the predicted labels in clustering? Write down what the predicted labels might look like for a few data points.

  2. In clustering, we predict labels from features. You can still cluster if you have labels, by just pretending they are features. Give two reasons why it would not be a good idea to do clustering in this manner, where we treat the labels as features and try to predict new labels that represent class.

  3. On the isomap plot (reduced dimension plot), color the points by which group they fall in (G1, G2, etc.). Is there any relationship between this and the clustering?

2.7. Cited References

Alp20

Ethem Alpaydin. Introduction to machine learning. MIT press, 2020.

FZJS21

Victor Fung, Jiaxin Zhang, Eric Juarez, and Bobby G. Sumpter. Benchmarking graph neural networks for materials chemistry. npj Computational Materials, June 2021. URL: https://doi.org/10.1038/s41524-021-00554-0, doi:10.1038/s41524-021-00554-0.

Bal19

Prasanna V Balachandran. Machine learning guided design of functional materials with targeted properties. Computational Materials Science, 164:82–90, 2019.

GomezBAG20

Rafael Gómez-Bombarelli and Alán Aspuru-Guzik. Machine learning and big-data in computational chemistry. Handbook of Materials Modeling: Methods: Theory and Modeling, pages 1939–1962, 2020.

NDJ+18

Aditya Nandy, Chenru Duan, Jon Paul Janet, Stefan Gugler, and Heather J Kulik. Strategies and software for machine learning accelerated discovery in transition metal chemistry. Industrial & Engineering Chemistry Research, 57(42):13973–13986, 2018.

Wei88

David Weininger. Smiles, a chemical language and information system. 1. introduction to methodology and encoding rules. Journal of chemical information and computer sciences, 28(1):31–36, 1988.

SKE19

Murat Cihan Sorkun, Abhishek Khetan, and Süleyman Er. AqSolDB, a curated reference set of aqueous solubility and 2D descriptors for a diverse set of compounds. Sci. Data, 6(1):143, 2019. doi:10.1038/s41597-019-0151-1.

PDN05

Duc Truong Pham, Stefan S Dimov, and Chi D Nguyen. Selection of k in k-means clustering. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 219(1):103–119, 2005.
